Small 100mm oval chairs square stainless steel cnc tube pipe bending machine price

  • 1 - 1 Sets
    $14,400.00
  • >=2 Sets
    $13,960.00
Max. Tube Diameter (mm):
100
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Material / Metal Processed:
steel,iron,aluminum, copper
Condition:
New
Max. Bending Angle (Deg):
190
Bending Precision (Deg):
0.01
Place of Origin:
Jiangsu, China
Brand Name:
ZHONGWAN
Automation:
Semi-automatic
Extra Services:
Machining
Certification:
ISO 9001:2000
Year:
2019
Power (kW):
15
Weight (KG):
5000
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Online support, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Key Selling Points:
Competitive Price
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Vehicle, transportation, furniture
Local Service Location:
Colombia, Nigeria, United States, Viet Nam, Indonesia, Thailand
Showroom Location:
Romania, United States, Viet Nam, Indonesia, Thailand
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, Motor, pump, PLC, Pressure vessel, engine
Model number:
DW100NC
Max wall thickness:
8mm
Max bending radius:
R500mm
Max bending angle:
190°
Max effective distance of mandrel:
3600mm
Oil tank capacity:
300L
Machine size:
5000x1600x1200mm
Control system:
NC control
Keyword:
100mm diameter steel pipe benders
Item:
Tube 180 Degree Bending Machine 100mm Diameter Steel Pipe Benders
Supply Ability
Supply Ability:
30 Set/Sets per Month 100mm diameter steel pipe benders
Packaging & Delivery
Packaging Details
100mm diameter steel pipe benders packing: wooden box packing
Port
shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

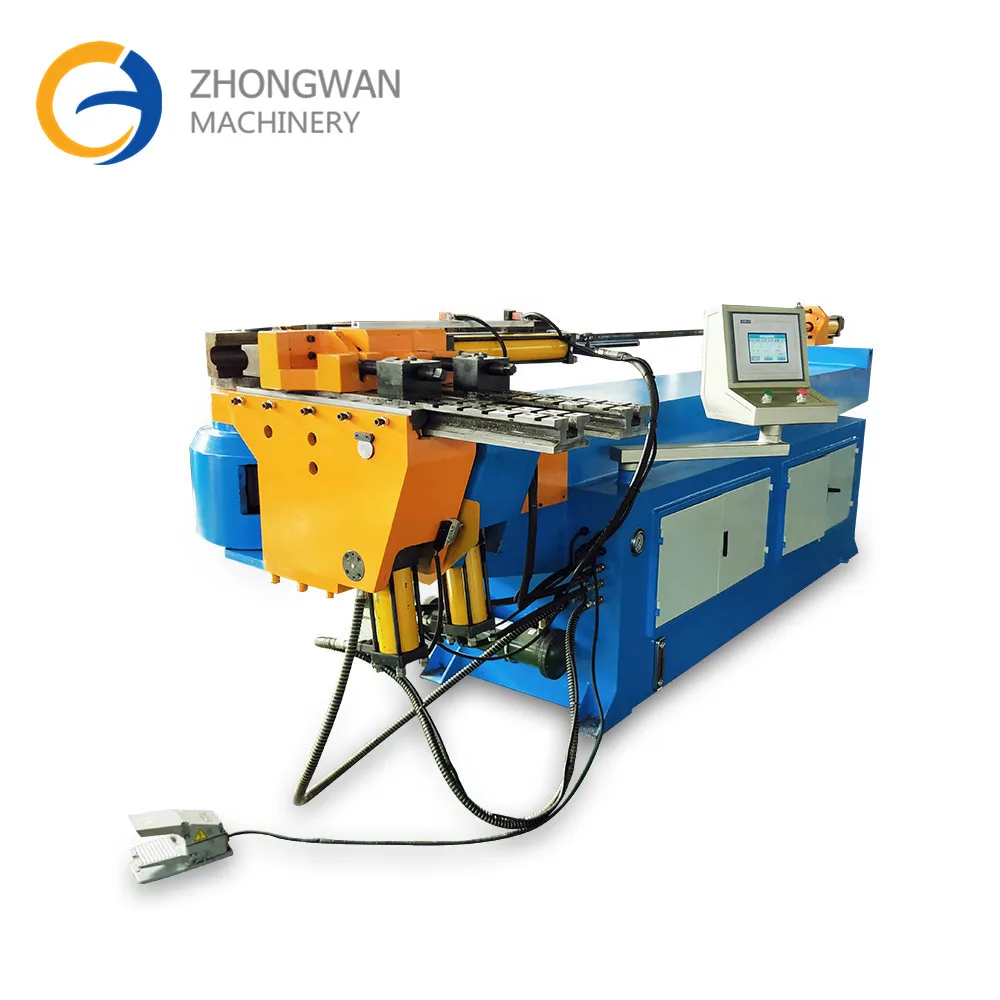

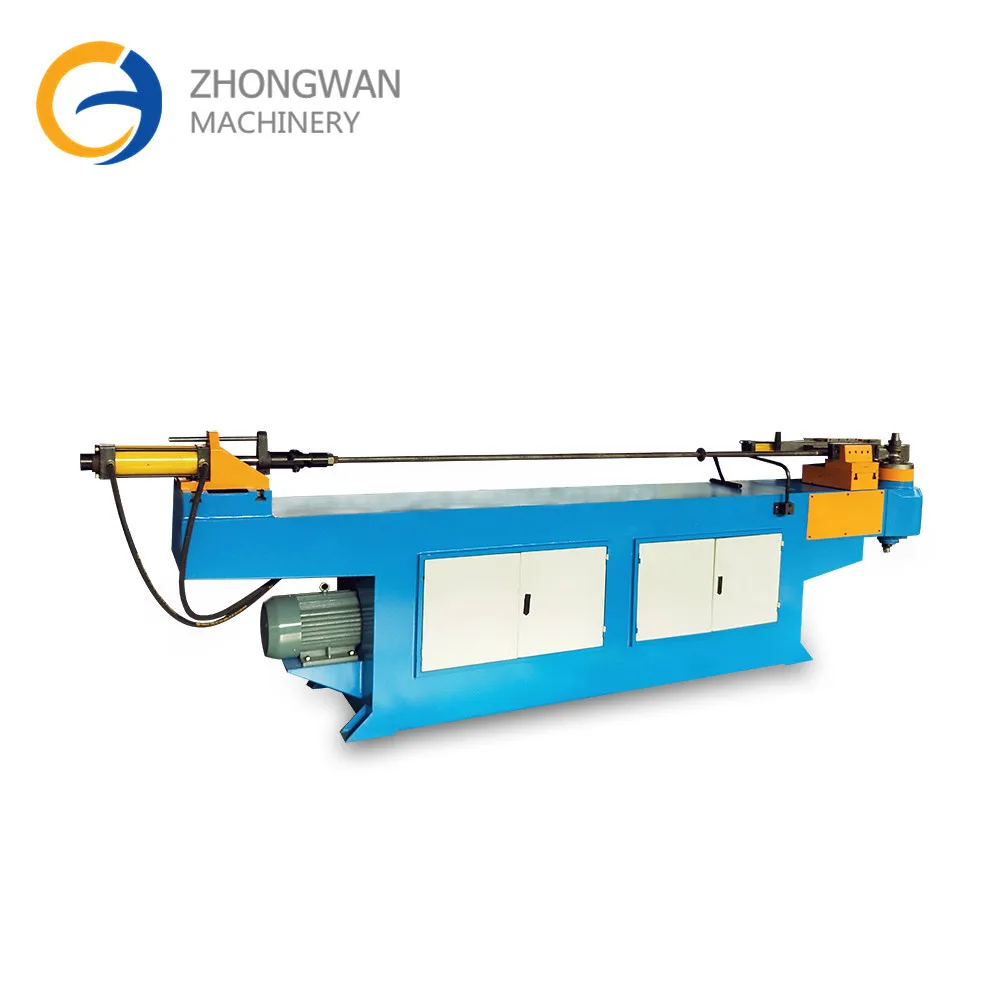

Small 100mm oval chairs square stainless steel cnc tube pipe bending machine price
Product Description

Specifications

* Bending part automatic
* Equipped with hydraulic system--economical way
* Stable performance
* Easy operation
* Cost-effictive machine

Main features

1. Operate by NC control unit, imported electric and hydraulic elements.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high.
4. 16 groups of bending information can be stored. Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.
6. Delicate design of the bending head makes the bending space large.
7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.
Max bending capacity
Ø100mmx8mm
Max bending radius
R500mm
Min bending radius
According to pipe diameter
Max bending degree
190°
Max effective distance of mandrel
3600mm
Control system
NC control
Motor power
15Kw
Max hydraulic pressure
14Mpa
Oil tank capability
300L
Measurement
500x160x120cm
Weight
5000kg
PLC Controller
Easy operating and working fast
  • Electrics
Schneider, France brand
Mortor
Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which can keeps high efficiency and accurate bending angle.
  • Clamping Hydraulic Oil Tube
Kejia, China famous brand.

Water Cooling System

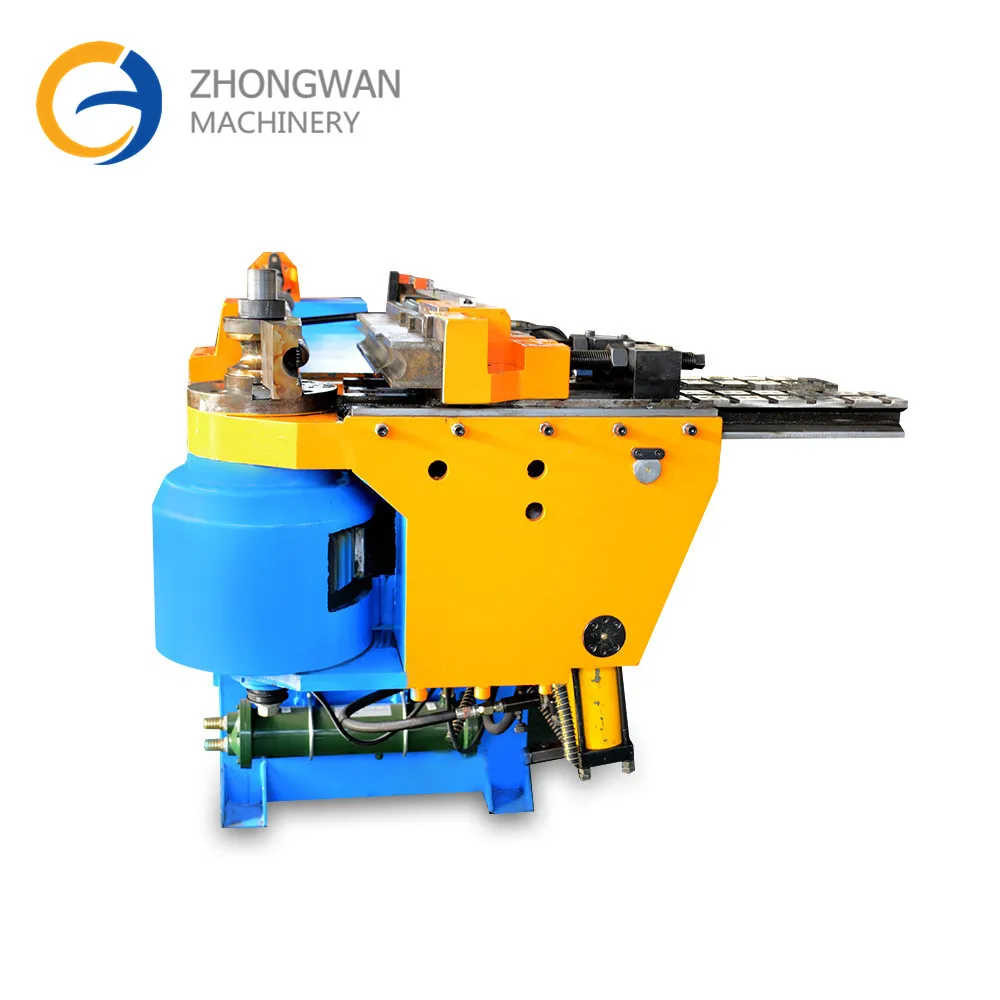

Detailed Images
Bending sample
Related Products
Company Profile
As a Sino-foreign joint venture specializing in machining and production of metal pipes, Jiangsu Zhongwan Machine Technology Co.,
Ltd. is located in the most developed Yangtze River Delta economic circle-Zhangjiagang, Jiangsu- the famous ring garden city in
China. Zhongwan Machinery has the strong design and R&D ability, already has developed CNC numerical control pipe bending machine,
series CNC NC Pipe end molding machine, series CNC NC metal circular sawing machine, riveting machine, CNC NC gear grinding
machine and other automatic pipe processing machines. Zhongwan Machinery provides complete sets and perfect automation equipment
for aerospace, heavy engineering machinery, nuclear power, wind energy, thermal power, shipbuilding yachts, auto parts, motor
vehicle frames, air conditioning, sports fitness equipment, steel pipe furniture, tourism and leisure products, water heating
sanitary ware, decorative materials and other industries of metal pipe products processing. The company can design and manufacture
the special specification unmanned intelligent automation machine, as well as all kinds of non-standard mechanical equipment
according to customer's demand.
FAQ
1.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!

2. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!

3.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!

4. Are you a manufacturer or trading company?
We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.

5.What is the difference for NC and CNC machines?
NC is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius .

6.Where is your factory located? How can I visit there?
Our factory is located in Suzhou Zhangjiagang city (beside to Shanghai).You can fly to Shanghai Hongqiao or Pudong airport directly.
