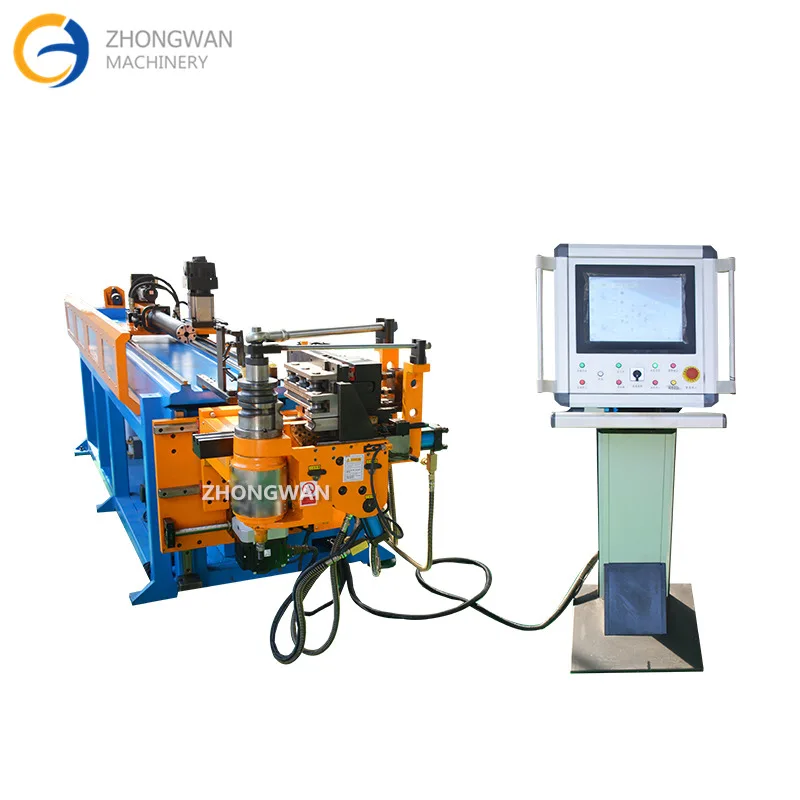

Thick wall deformed 125 mm electric elbow iron ss tube pipe bending machine 1/2price

  • >=1 Sets
    $42,990.00
Max. Tube Diameter (mm):
75
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Material / Metal Processed:
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Condition:
New
Max. Bending Angle (Deg):
190
Bending Precision (Deg):
0.1
Place of Origin:
Jiangsu, China
Brand Name:
ZW
Automation:
Automatic
Extra Services:
Machining
Certification:
ISO 9001:2000
Power (kW):
11
Weight (KG):
4500
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Key Selling Points:
Multifunctional
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Local Service Location:
United States, Viet Nam, Indonesia
Showroom Location:
United States, Viet Nam, Indonesia
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, Motor, Pump, PLC, Pressure vessel
Model Number:
DW75CNC-4A-2S
Hydraulic motor power:
11kw
Max bending diameter:
75mm
Max wall thickness:
5mm
Max bending radius:
R320mm
Max bending angle:
190°
Max effective distance of mandrel:
2900mm
Machine weight:
4500kg of each cnc mandrel bender
Machine size:
5200x1150x1360mm
Item:
Rolling Pipe Used Bending Machine Fabrication Cnc Mandrel Bender
Supply Ability
Supply Ability:
30 Set/Sets per Month cnc mandrel bender
Packaging & Delivery
Packaging Details
cnc mandrel bender packing: wooden box packing
Port
shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Thick wall deformed 125 mm electric elbow iron ss tube pipe bending machine 1/2price
Product Description

Specifications

* Technical:cold bending
* Electrics:France Schneider
* PLC:Japan Mitsubishi
* Servo motor&driver: Japan Mitsubishi

Main features

1. Fully automatic and CNC pipe bending machine 2. Equipped with servo motor programmable axis, 2 axis(standard), 3 axis, 4 axis or 5 axis... 3. Feeding: servo motor drive; Rotation: servo motor drive 4. Bending: hydraulic and encoder control; Servomotor with reducer. 5. Imported hydraulic system and PLC(standard) unit or IPC(optional). 6. Automatic lubrication system for moving areas. 7. Self-diagnostic system, detecting the error immediately. 8. Multiple groups pipe-bending information storage. 9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature. 10. Touch screen and human/machine interface control provide user friendly operations.
Max bending capacity
Ø75mmx5mm
Max bending radius
R320mm
Min bending radius
According to pipe diameter
Max bending degree
190°
Max effective distance of mandrel
2900mm
Control system
CNC control
Bending speed
Max 40°/s
Rotary speed
Max 160°/s
Feeding speed
Max 800mm/s
Bending accuracy
±0.1°
Rotary accuracy
±0.1°
Feeding accuracy
0.1mm
Hydraulic motor power
11KW
Rotary servo motor power
1.5KW
Feeding servo motor power
2KW
Max hydraulic pressure
12Mpa
Measurement
5200x1150x1360mm
Weight
4500kg
Mitsubishi Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.
  • Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.
Electrics
Schneider, France brand
  • Valve
7 Ocean, Taiwan brand

Air cooler
Ensure the stability of the machine for a long time
  • PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference
Detailed Images
Bending sample
Related Products
Company Profile
As a Sino-foreign joint venture specializing in machining and production of metal pipes, Jiangsu Zhongwan Machine Technology Co.,
Ltd. is located in the most developed Yangtze River Delta economic circle-Zhangjiagang, Jiangsu- the famous ring garden city in
China. Zhongwan Machinery has the strong design and R&D ability, already has developed CNC numerical control pipe bending machine,
series CNC NC Pipe end molding machine, series CNC NC metal circular sawing machine, riveting machine, CNC NC gear grinding
machine and other automatic pipe processing machines. Zhongwan Machinery provides complete sets and perfect automation equipment
for aerospace, heavy engineering machinery, nuclear power, wind energy, thermal power, shipbuilding yachts, auto parts, motor
vehicle frames, air conditioning, sports fitness equipment, steel pipe furniture, tourism and leisure products, water heating
sanitary ware, decorative materials and other industries of metal pipe products processing. The company can design and manufacture
the special specification unmanned intelligent automation machine, as well as all kinds of non-standard mechanical equipment
according to customer's demand.
FAQ
1.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!

2. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!

3.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!

4. Are you a manufacturer or trading company?
We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.

5.What is the difference for NC and CNC machines?
NC is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius .

6.Where is your factory located? How can I visit there?
Our factory is located in Suzhou Zhangjiagang city (beside to Shanghai).You can fly to Shanghai Hongqiao or Pudong airport directly.
